No. Category Part Number Package size Image Application Parameter Specification(PDF)
1 WS2813 Family WS2813B-B SMD 5050 6PIN(Black surface)
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2813B 8bit 256 gray 3.3V-5.5V 16mA*3
2 WS2813 Family WS2813B-MINI SMD 3535 6PIN
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2813B-Mini 8bit 256 gray 3.3V-5.5V 16mA*3
3 WS2812 Family WS2812A SMD 5050 4PIN
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
● LED consumer electronics.
High brightness version，WS2812A 8bit 256 gray 3.3V-5.5V 16mA*3
4 WS2812 Family WS2812B 5050/ 3535/ 2427/2020/1313/4020
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B 8bit 256 gray 3.3V-5.5V 12mA*3
5 WS2812 Family WS2812C 5050/ 3535/ 2427/2020/1313/4020
Applications
●Consumer electronics.
●Computer and peripheral equipment, game equipment, various electrical equipment field.
Small current version，WS2812C 8bit 256 gray 3.3V-5.5V 5mA*3
6 WS2812 Family WS2812D Φ5 Flat,Φ5 Straw hat,Φ8 Straw hat
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
● LED consumer electronics.
WS2812D 8bit 256 gray 3.3V-5.5V 12mA*3
7 WS2812 Family WS2812E 5050/ 3535/ 2427/2020/1313/4020
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
Economy version WS2812E,8bit 256 gray 3.8V-5.5V 12mA*3
8 WS2812 Family WS2812B-MINI-X1 SMD 3535 4PIN(Thin）
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-Mini-X1 8bit 256 gray 3.3V-5.5V 12mA*3
9 WS2812 Family WS2812B-MINI SMD 3535 4PIN
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-MINI, 8bit 256 gray 3.3V-5.5V 12mA*3

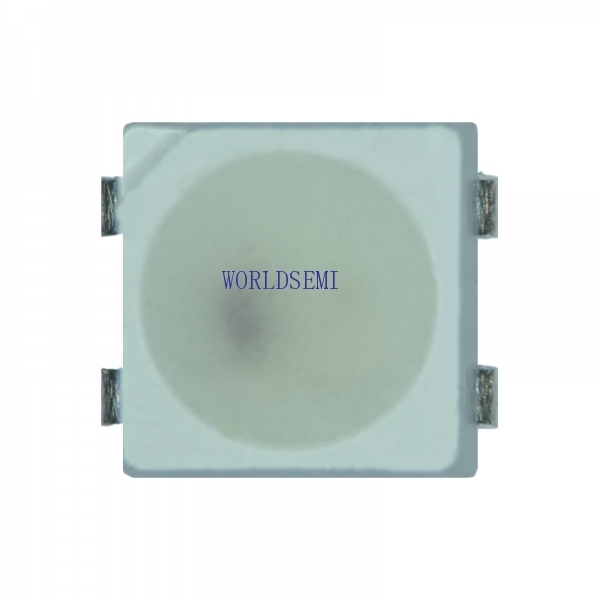

10 Digital LED Series WS2812B_MINI_V3_T
11 WS2812 Family WS2812B-B SMD 5050 4PIN
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-B, 8bit 256 gray 3.3V-5.5V 12mA*3
12 WS2812 Family WS2812B-4020/WS2812C-4020 SMD 4020 Sideview
Applications
Consumer electronics.
LED decorative lighting,
Computer and peripheral equipment, game equipment, various electrical equipment field.
WS2812B-4020 8bit 256 gray 3.3V-5.5V 12mA*3
WS2812C-4020 8bit 256 gray 3.3V-5.5V 5mA*3

  • *
  • *
  • *
  • *
  • *
