No. Category Part Number Package size Image Application Parameter Specification(PDF)

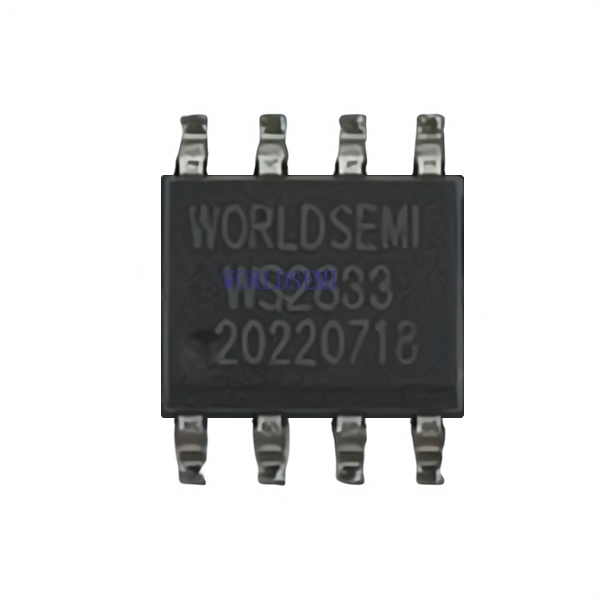

1 LED Decoration IC WS2832/WS2833 Series
2 WS2814 Family WS2814 Family SOP12/SSOP10，SOP8/ SOT23-8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
Series Part No. Gray Scale Voltage RGB Current Package Dimensions Capacitor Reverse connection protection Overvoltage  protection

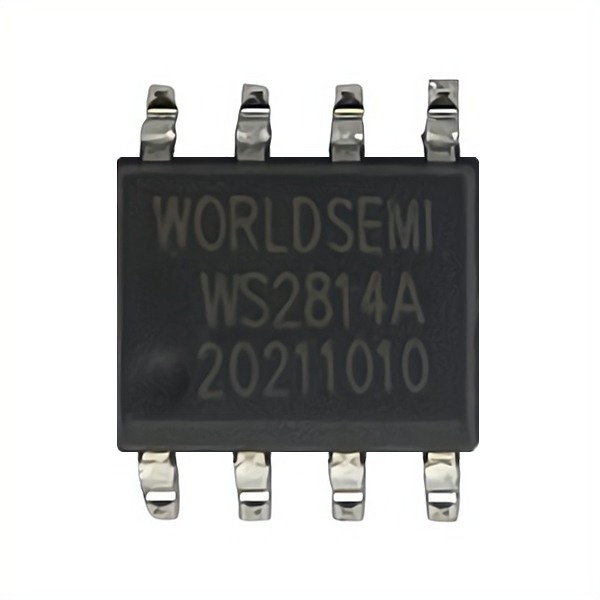

WS2814A 8bit 256 gray scale 3.3V-48V 4 Channel 16mA*4, 2KHZ SOP8/ SOT23-8 Black/White No
WS2814B 8bit 256 gray s
3 WS2814 Family WS2814A SOP8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
WS2814A 8bit 256 gray scale 3.3V-24V 4 Channel 16mA*4 SOP8/ SOT23-8 Black/White
4 WS2814 Family WS2814B SOP10
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
Part No. Gray Scale Voltage RGB Channel Q’TY RGB Channel Current Package Dimension Plastic sealing body color Dual-signal
WS2814B 8bit 256 gray scale 3.3V-24V 4 Channel 16mA*4,4KHZ SOP10 Black Yes
5 WS2814 Family WS2814C SOP8/SOT23-8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
Series Part No. Gray Scale Voltage RGB Current Package Dimensions Capacitor Reverse connection protection Overvoltage  protection
WS2814C 8bit 256 gray scale 3.3V-24V 4 Channel 16mA*4, 4KHZ SOP8/SOT23-8 Black/White No
6 WS2814 Family WS2814D SOP8/SOT23-8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
Series Part No. Gray Scale Voltage RGB Current Package Dimensions Capacitor Reverse connection protection Overvoltage  protection
WS2814D 8bit 256 gray scale 3.3V-48V 4 Channel RGB:16mA,W:60mA SOP8/SOT23-8 Black/White No
7 WS2811 Family WS2811 Family SOP8/ SOT23-8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
● LED consumer electronics.
Feature
● Output port compression 20V.DIN port compression 9.5V.
● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply.
● 256 Gray-scale adjustable and scan frequency is mor
8 WS2816 Family WS2816 Family SOP8
Applications
●LED transparent screen, LED pixel screen, LED special-shaped screen and other high-definition display projects, and various electronic products.
WS2816 SOP8
9 LED Decoration IC WS2808 Series SOP8/ SOT23-8
10 WS2814 Family WS2814F SOT23-8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
WS2814F 8bit 256 gray scale 3.3V-24V 4 Channel 16mA*4 SOP8/ SOT23-8 Black/White
11 WS2811 Family WS2811(Black) SOP8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
● LED consumer electronics.
Feature(Black WS2811)
● Output port compression 20V.DIN port compression 9.5V.
● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply.
● 256 Gray-scale adjustable and scan frequency is mor
12 WS2811 Family WS2811(White) SOP8
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc.
●Indoor/outdoor LED video or irregular screen.
● LED consumer electronics.
Feature(White WS2811)
● Output port compression 20V.DIN port compression 9.5V.
● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply.
● 256 Gray-scale adjustable and scan frequency is mor

  • *
  • *
  • *
  • *
  • *
