| No. | Category | Part Number | Package size | Image | Application | Parameter | Specification(PDF) |
|---|---|---|---|---|---|---|---|

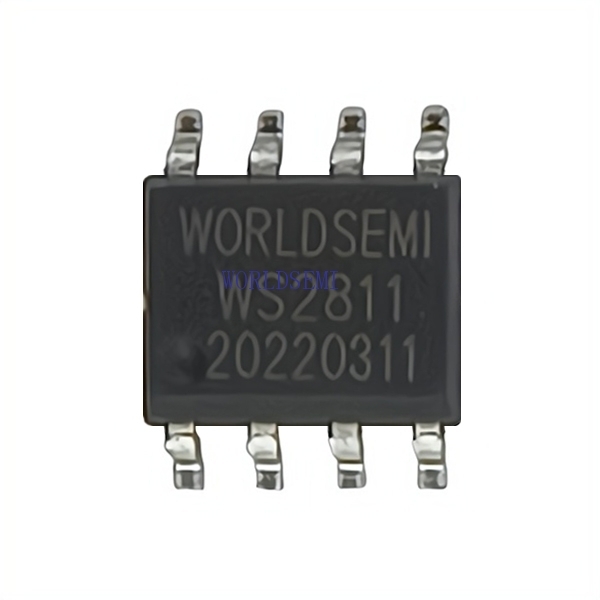

| 1 | WS2811 Family | WS2811 Family | SOP8/ SOT23-8 |  |
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc. ●Indoor/outdoor LED video or irregular screen. ● LED consumer electronics. |
Feature ● Output port compression 20V.DIN port compression 9.5V. ● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply. ● 256 Gray-scale adjustable and scan frequency is mor |
|
| 2 | WS2811 Family | WS2811(Black) | SOP8 |  |
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc. ●Indoor/outdoor LED video or irregular screen. ● LED consumer electronics. |
Feature(Black WS2811) ● Output port compression 20V.DIN port compression 9.5V. ● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply. ● 256 Gray-scale adjustable and scan frequency is mor |
|
| 3 | WS2811 Family | WS2811(White) | SOP8 |  |
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc. ●Indoor/outdoor LED video or irregular screen. ● LED consumer electronics. |
Feature(White WS2811) ● Output port compression 20V.DIN port compression 9.5V. ● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply. ● 256 Gray-scale adjustable and scan frequency is mor |
|

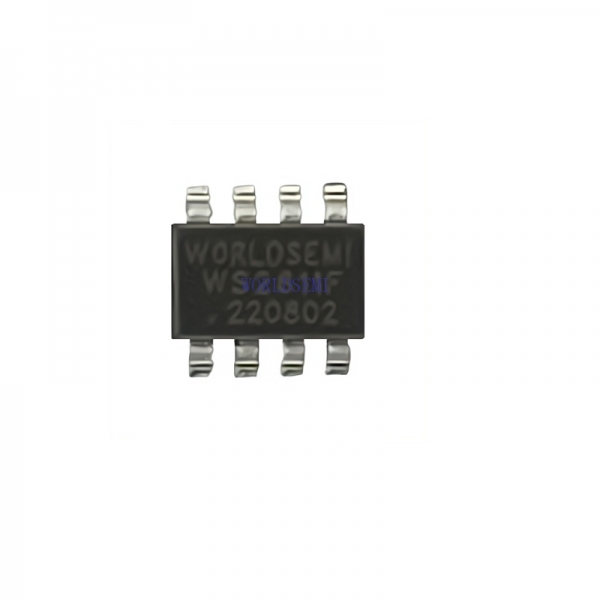

| 4 | WS2811 Family | WS2811F | SOT23-8 |  |
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc. ●Indoor/outdoor LED video or irregular screen. ● LED consumer electronics. |
Feature(Black WS2811F) ● Output port compression 20V.DIN port compression 9.5V. ● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply. ● 256 Gray-scale adjustable. |
|
| 5 | WS2811 Family | WS2811N-DFN8-2X3MM | DFN8-2X3MM |  |
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc. ●Indoor/outdoor LED video or irregular screen. ● LED consumer electronics. |
Features(WS2811N-DFN8-2X3MM) Current:16mA ● Output port compression 20V.DIN port compression 9.5V. ● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply. ● 256 Gray-scale adjustable. |
|

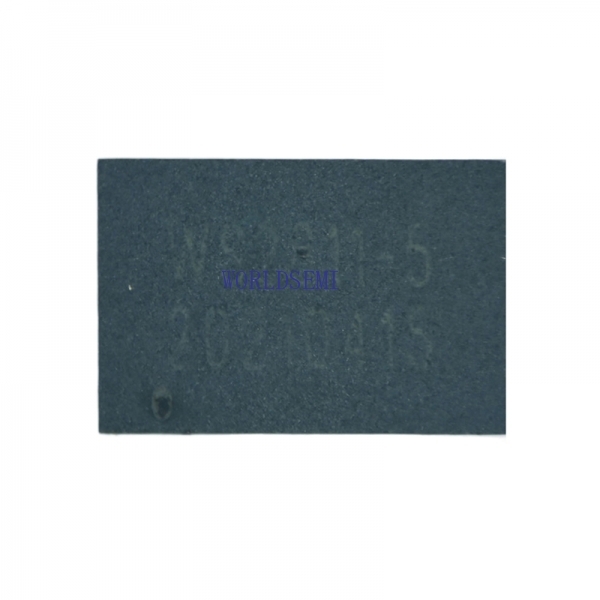

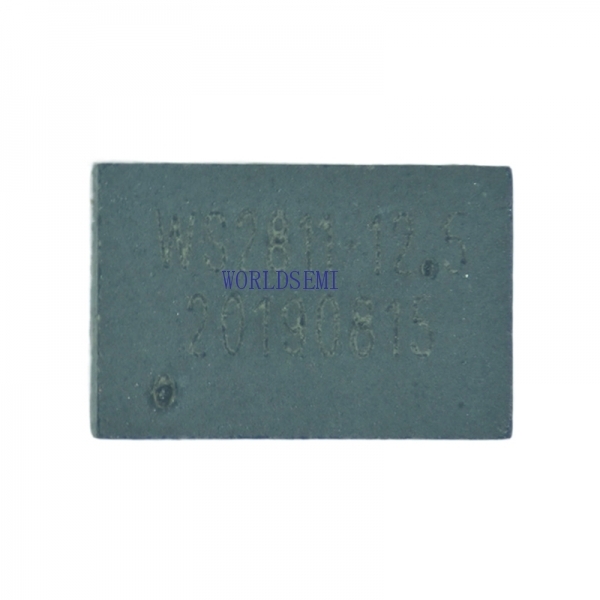

| 6 | WS2811 Family | WS2811-DFN8-2x3mm_5mA/12.5mA/15mA WS2811-DFN8-2x2mm_12.5mA |
DFN8 |  |
Applications
● LED full color decorative lighting, such as LED string, LED strip, LED module etc. ●Indoor/outdoor LED video or irregular screen. ● LED consumer electronics. |
Features(WS2811-DFN8) Current:15mA/12.5mA/5mA ● Output port compression 20V.DIN port compression 9.5V. ● Built-in voltage-regulator tube, only a resistance needed to add to IC VDD feet when under 24V power supply. ● 256 Gray-scale adjustab |
