WS2813B Series products upgrade notice

To continuously provide a better user experience, We have completed the technical iteration and upgrade of WS2813B series products. This upgrade maintains the communication protocol and package size exactly the same as the existing products, only optimizing the internal parameters. The specific improvements are as follows:

1.Ultra-Low Quiescent Power Consumption

IC standby current ≤ 1 µA;Operating current reduced from 1 mA to 200 µA; Achieving over 80% energy savings in basic power consumption.

2.Constant-Current Drive at 3.3V

RGB channel voltage drop optimization,3.3V power supply can achieve the same light emission consistency as 5V. When working with 3.3V power supply, energy can be saved by more than 30%.

3.Zero flicker when po
wer-on

Completely eliminate random flickering upon power-on and enhance the overall visual experience during startup.

4.EMC upgrade again

Internal structure optimization,reduces radiated emissions by more than 6 dB, making it easier to pass radiated emission tests than before.

5.Control signal upgrade again

The control signal level is adjusted to 0.55 VDD.

It is ensured that the 3.3V signal level can fully control the device when 5V power supply,

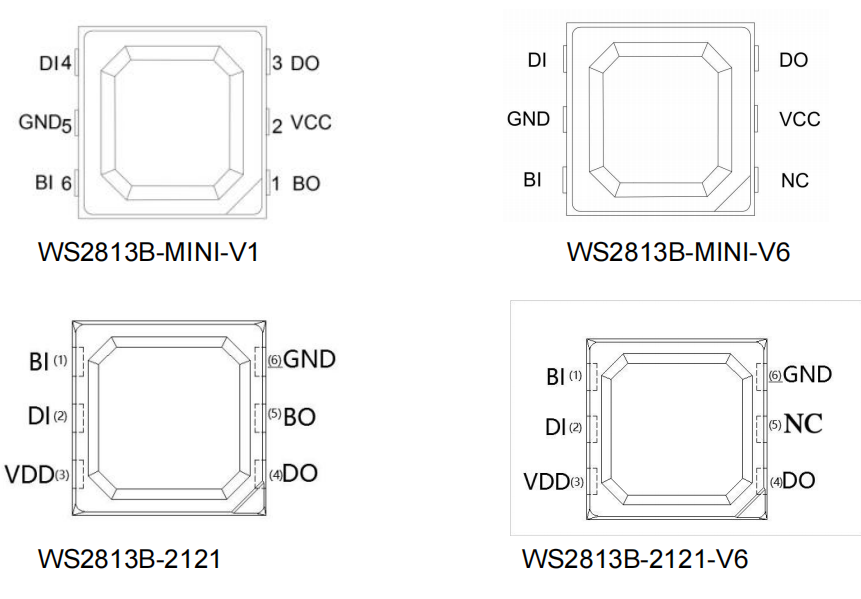

6. PIN Configuration distinction:3535 and 2121 package

After the upgrade, the model suffix will be uniformly V6 version. The unified naming rule is WS2813B-V6 (5050 package), WS2813B-MINI-V6 (3535 package). Please don’t use old version and new version together,suggest using them separately,.The inventory switch will start immediately.

Should you have any questions or require test samples, please feel free to contact us at any time


WORLDSEMI CO.,LIMITED

25^th,May,2026
